Product Overview

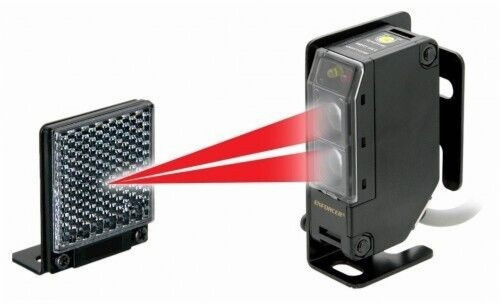

Seco-Larm E-936-S45RRGQ Enforcer – 45 ft Retro-Reflective IP66 Beam Sensor
The Seco-Larm E-936-S45RRGQ Enforcer is a dependable retro-reflective photoelectric beam sensor designed for both indoor and outdoor applications. With a sensing range of up to 45 feet (14 m), IP66 weatherproof construction, and UL-325 compliance, it delivers reliable detection for gates, garage doors, storefronts, and parking systems. Featuring adjustable sensitivity, status LEDs, and straightforward relay outputs, it ensures easy installation and long-term performance.
Key Features ▼
- Long-range detection: Adjustable sensing from 0.5 ft to 45 ft (0.2–14 m)
- Weatherproof durability: Rugged IP66 enclosure for indoor/outdoor use
- Simple installation: Pre-wired 6.5 ft (2 m) cord with included mounting brackets and reflector
- Clear visual status: Yellow LED for alignment, red LED for power status
- Reliable output: SPDT relay (NO/NC/COM) with built-in 10 kΩ resistor; UL-325 compliant
Specifications ▼
- Model / Part Number: E-936-S45RRGQ
- Series: ENFORCER
- Type: Retro-reflective photoelectric beam sensor
- Operating Voltage: 12–30 V DC/AC, 60 Hz, 100 mA
- Current Draw: Standby 70 mA @ 12 V DC; Active 55 mA @ 12 V DC
- Sensing Range: 0.5 ft to 45 ft (0.2–14 m), adjustable
- Response Time: 10 ms
- Light Source: Infrared (IR) LED
- LED Indicators: Yellow = alignment; Red = power on
- Output: SPDT relay (NO/NC/COM) with 10 kΩ resistor on N.O.
- Switching Capacity: 2 A @ 30 VAC/VDC
- Enclosure Rating: IP66 (weatherproof)
- Operating Temperature: −4 °F to 131 °F (−20 °C to 55 °C)
- Sensor Dimensions: 13/16 ″ × 2-1/2 ″ × 1-9/16 ″ (20.5 × 63 × 39 mm)
- Reflector Dimensions: Ø3-1/4 ″ × 3/8 ″ (Ø82 × 9 mm)
- Pre-wired Cord: 6½ ft (2 m) × Ø¼ ″ (Ø6 mm)
- Country of Manufacture: (Not specified)
- Weight (estimated): Approx. 1 lb (shipping weight) — retailer listing :contentReference[oaicite:4]{index=4}
- UPC: 676544017530 :contentReference[oaicite:5]{index=5}
Warranty Information
Warranty is covered by the manufacturer
Please see:
