Product Overview

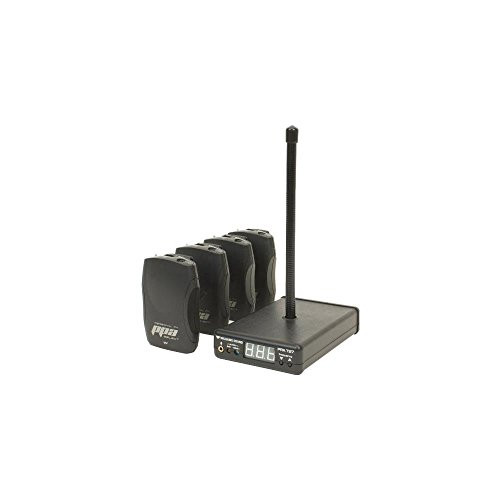

Williams Sound PPA VP 37 Personal PA Value Pack System, Includes PPA T27 Transmitter, Select PPA R37 Receivers
The Personal FM Value Pack System Value Pack System PPA VP 37 broadcasts a speaker´s voice, music program, or audio service wirelessly up to 1000 feet to a listening audience.
Participants using the single-channel receiver with an earbud or neckloop (included) can listen to the broadcast at the volume of their comfort. The cornerstone of the Personal FM Value Pack System is the T27 transmitter, featuring an LED display panel and push-button channel selection for easy operation.
This system has 17 available channels and operates on 72-76 MHz. This system complies with 2010 ADA guidelines for hearing assistance.
Key Features:
- PPA T27 transmitter
- Up to 1000’ operating range
- Transmitter is FCC Part 15 compliant
- Great for portable use
- Flexible 3.5mm mic and RCA line-level inputs
- Transmitter is FCC Part 15 compliant
Specifications:
| ANT 021 | |
| Used with | PPA T45, PPA T55, PPA T55C, PPA T27 Transmitters |
| Connector type | Screw to PCB |
| EAR 013 | |
| Plug | 3.5 mm mono |
| Cord length | 39 inches |
| Impedance | 32 Ohms |
| Weight | 9g |
| NKL 001 | |
| Color: | Black |
| Weight: | 1.5 oz |
| Length: | 18.5” cord |
| Connector: | NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected |
| Impedance: | 8-16 Ohms |
| Input Power: | 500 mW max |

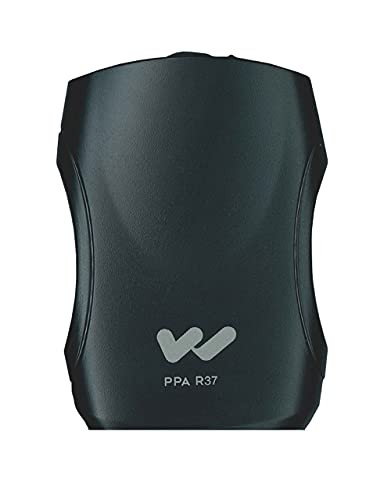

| PPA R37 | |
| Color: | Black |
| Battery Type: | (2) AA Alkaline or 2 x AA NiMH |
| Current Consumption: | 52mA nominal |
| Operating Freq.: | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
| Intermediate Freq.: | 75 kHz |
| Sensitivity: | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload: | 100 mV |
| Frequency Response: | 200 – 15 kHz |
| Dimensions: | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
| Weight: | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
