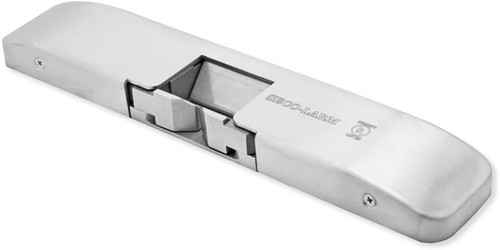

Seco-Larm SD-996C-NUVQ Electric Door Strike with Vertical Adjustment, 12/24 VDC Operation, Accommodates deadbolts up to 1", Field selectable for fail-safe or fail-secure
Seco-Larm SD-996C-NUVQ Electric Door Strike with Vertical Adjustment, 12/24 VDC Operation, Accommodates deadbolts up to 1", Field selectable for fail-safe or fail-secure
The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications
Key Features
12/24 VDC Operation
Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
Accommodates deadbolts up to 1"
Field selectable for fail-safe or fail-secure
Includes 5 different stainless-steel faceplates
Includes trim plate to hide gaps in installation
Reversible non-handed design
Static strength 1,000 lbs. (454kg)
Tested to 250,000 cycles (UL Tested)
Specifications
Operating Voltage: 12/24 VDC
Current Draw: 300mA@12VDC, 150mA@24VDC
Dynamic strength: 33 ft-lbs. (4.56 m-kgs)
Latch Throw: 1” (25mm) max with 1/8” (3mm) door gap
