Product Overview

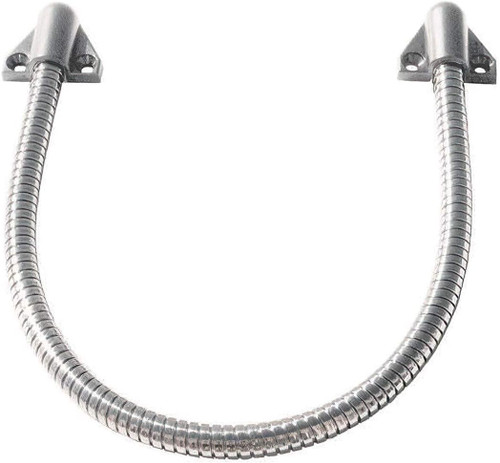

Seco-Larm SD-969-S18Q Armored Door Cord – Die-Cast Aluminum End Caps, 17" (43 cm)
A robust, surface-mount armored door cord featuring die-cast aluminum end caps and a durable stainless-steel cord. Ideal for routing wiring to power electric locks or access systems installed in doors, it provides secure and long-lasting protection against wear and vandalism.
Key Features ▼
- Die-cast aluminum end caps offer high durability and protection
- Stainless-steel cord measures 17" (43 cm), providing ample reach.
- Designed specifically to carry wiring for electric locks or access control systems.
- Easy surface-mount installation; mounting screws are included.
- Compact end cap dimensions (1-7/8″ × 7/8″ × 1-9/16″ / 48 × 22 × 40 mm) allow seamless door integration
Specifications ▼
- Model: SD-969-S18Q
- Brand: Seco-Larm
- Material – Door Cord: Aluminum
- Material – End Caps: Die-cast Aluminum
- Cord Length: 17" (43 cm)
- Inside Door-Cord Diameter: 5/16" (8 mm)
- Outside Door-Cord Diameter: 1/2" (12.7 mm)
- End Cap Dimensions (W × H × D): 1-7/8″ × 7/8″ × 1-9/16″ (48 × 22 × 40 mm)
- Mount Type: Surface-mount; mounting screws included
- Function: Conduits wiring for power to electric locks/access systems mounted in doors
Warranty Information
Warranty is covered by the manufacturer
