Product Overview

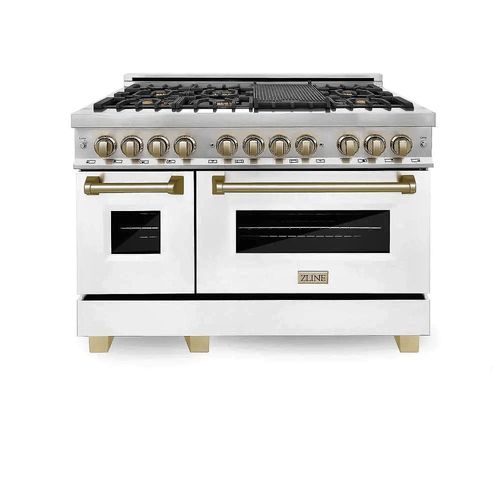

ZLINE RAZ-WM-48-CB 48" Autograph Dual Fuel Range, 7 Burners, Double Ovens, White Matte Doors, Champagne Bronze
Bring attainable luxury and pro-level performance to your kitchen with the ZLINE Autograph Edition RAZ-WM-48-CB. This 48-inch dual fuel range pairs a powerful 7-burner gas cooktop with two electric ovens, including a large electric convection oven for even baking results. Finished in 304-grade stainless steel with White Matte doors and elegant Champagne Bronze knobs and handle accents, this range blends high performance with a standout designer aesthetic—built for everyday family cooking and elevated entertaining alike.
Key Features ▼
- Professional dual fuel performance: gas cooktop + large electric convection oven for even heat distribution
- 7 Italian-crafted sealed burners including an expansive fish burner and electronic spark ignition
- Two electric ovens with 6.0 cu. ft. total capacity for flexible cooking
- Premium design finishes: 304-grade stainless steel, White Matte doors, and Champagne Bronze accents
- Easy-clean porcelain cooktop with triple-layer glass doors for insulation and efficiency
Specifications ▼
- Brand: ZLINE
- Manufacturer Part Number (MPN): RAZ-WM-48-CB
- Model: RAZ-WM-48-CB
- Series: ZLINE Legacy Series (Autograph Edition)
- UPC: 810058127662
- Appliance Category: Freestanding Range
- Range Size (Width): 48 in.
- Fuel Type: Convection Electric Oven – Gas Cooktop
- Finish / Color Family: Stainless Steel, White Matte Door
- Door Finish: White Matte (2 oven doors)
- Accent Finish: Champagne Bronze knobs and handle accents
- Cooktop Material: Porcelain cooktop
- Grates: Durable cast iron grates
- Overall Dimensions (W x D x H): 47.75 in. W x 27.5 in. D x 36.125 in. H
- Product Width: 47.75 in.
- Product Depth: 27.50 in.
- Product Height: 36.13 in.
- Depth with Door(s) Open 90°: 41.8 in.
- Oven Capacity: 6.0 cu. ft. total (2 + 4)
- Oven Type: Double oven (large electric convection oven + small bake and broil oven)
- Oven Interior Dimensions: 24.875 in. W x 17.75 in. D x 16 in. H
- Convection Fan: Yes
- Burners: 7 Italian-made sealed burners
- Cooktop Ignition: Electronic spark ignition for all burners
- Total BTUs: 85,500
- Back Left Burner BTU: 10,000
- Back Left Middle Burner BTU: 12,500
- Back Right Burner BTU: 10,000
- Front Left Burner BTU: 18,000
- Front Left Middle Burner BTU: 4,500
- Front Right Burner BTU: 18,000
- Fish Burner BTU: 12,500
- Cast-Iron Griddle: Included (pre-seasoned cast iron)
- Oven Door Glass: Triple-layer glass (both doors)
- Oven Door Window: Landscape oven window design
- Oven Lights: 3 halogen lights (front control panel switch)
- Oven Racks: 4 smooth-glide ball-bearing oven racks
- StayPut Hinges: Heavy-duty hinges imported from Italy
- Adjustable Legs: Yes (adjust range height from 36" to 38.5")
- Control Type: Manual front control
- Electrical Requirements: 240vac
- Frequency: 60Hz
- Amps: 30A
- Product Weight: 270 lb
- Certifications and Listings: CSA Listed
- Manufacturer Warranty: 1-year parts and service; limited lifetime warranty on burners
- LP Conversion Kit: Included (cooktop conversion must be done by a professional)
- Assembly: Ships in multiple boxes; minimal assembly required upon arrival
- Maintenance: Minimal cleaning; hand-finished porcelain one-piece cooktop
Warranty Information
1-year parts and service; limited lifetime warranty on burners
