Product Overview

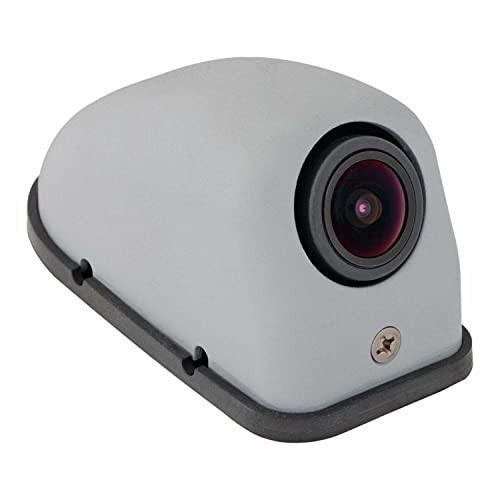

Voyager VCAHD142 Vehicle Backup Camera, Color CMOS, IR LED, IP69K, Aluminum, 12VDC (Left/Right Options)
The Voyager VCAHD142 Series is a high-performance side mount camera designed for commercial vehicles and fleet safety. Available in both left and right side configurations, these cameras feature advanced color CMOS optics, IR LED low-light assist, and a rugged aluminum housing. Delivering reliable, clear visuals in all weather conditions, the IP69K waterproof rating and corrosion resistance ensure long-lasting durability, making them ideal for demanding environments.
Key Features â–¼
- High-performance color CMOS sensor for vivid, accurate imaging
- IR LED low-light assist for enhanced night and low-light visibility
- Rugged aluminum housing with IP69K waterproof and ASTM-B117 corrosion resistance
- Compact, side-mount design for easy installation
- 12VDC power system with low power consumption
Specifications â–¼
- Power System: 12VDC
- Operating Voltage Range: 9V - 15VDC
- Power Consumption: 135mA
- Video Output Signal Format: NTSC
- Video Signal Output Level: 1.0V p-p ; 75Ω
- Sensor: 1/3" CMOS
- Iris/Shutter Type: Electronic Automatic
- Resolution: 700 TV Lines
- Effective Pixel: 968 H x 488 V
- Sensitivity: 0.1 Lux (day), 0 Lux (with IR)
- Image Orientation: Mirror
- Waterproof Rating: IP69K
- Unit Dimensions (without cable): 3.27 x 1.93 x 1.77 inches
- Weight: 0.41 Pounds
Warranty Information
Warranty is covered by the manufacturer
Please see:
